Basic Info. |

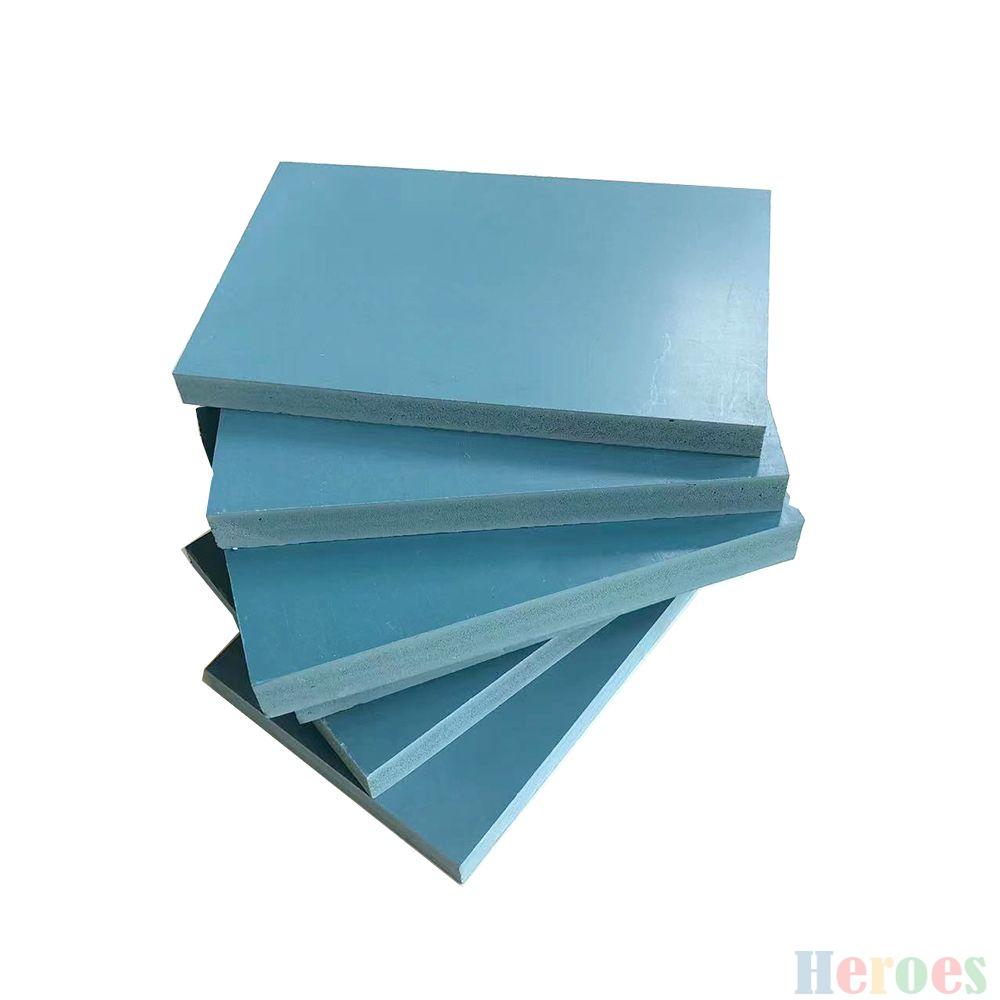

PVC Building Formwork |
|
Model NO. |
Customizable |
|
Material |
PVC (Polyvinyl Chloride) |
|
Type |
Flat |
|
Forming Way |
Extrusion |
|
Application |
Building & Construction (Functional Components for Concrete Pouring) |
|
Material Properties |
Flame Retardant, Waterproof |
|
Markets Served |
Building & Construction Industry |
|
Customized Service |
Available |
|
Usage |
Internal Construction |
|
Color |
Multi-color |
|
Surface Finishing |
Finished |
|
Density |
0.65-0.7 g/cm |
|
Hardness |
80-90 Shore |
|
Weight |
12-28 kgs/Sheet |
|
Thickness |
5-30 mm |
|
Service Life |
More Than 50 Cycles |
|
Core Features |
Waterproof, Flame Proof, No Need for Releasing Agent |
|
Transport Package |
Pallet |
|
Specification (Size) |
24401220mm / 1830915mm |
|
Trademark |
Customizable |
|
Origin |
China |
|
HS Code |
3925900000 |
|
Production Capacity |
1000 PCS/Day |
|
Package Size |
244.00cm * 122.00cm * 100.00cm |
|
Package Gross Weight |
1500.000kg |
SIZE
THICKNESS
DENSITY
WEIGHT/PC
QTY/20FT CONTAINER
QTY/40HQ CONTAINER
2440*1220MM
12MM
0.65
23.22
560PCS
1162PCS
2440*1220MM
15MM
0.65
29.02
450PCS
930PCS
2440*1220MM
18MM
0.65
34.83
400PCS
800PCS
2440*1220MM
20MM
0.65
38.7
350PCS
700PCS
OTHER AVAILABLE SIZE: 2500*1250MM, 3600*1220MM, 1800*1200MM...
OTHER AVAILABLE THICKNESS: 5-30MM
COLOR: BLUE, GREY AND CUSTOMIZED
Product Advantages
1. Waterproof, acid resistant, alkali resistant, corrosion resistant, high strength and good toughness, light weight, good impact resistance strength, can be drilled, cut and nailed.
2. With high strength, good toughness and good impact resistence, can be reused more than 50 times.
3. No need release agent, easy to clean and maintain, save cost.
4. Surface is smooth, stripping performance with concrete is good, easy to demould, which can greatly speed up the construction process, and contribute to the realization of clear water concrete.
5. Can be recycled.

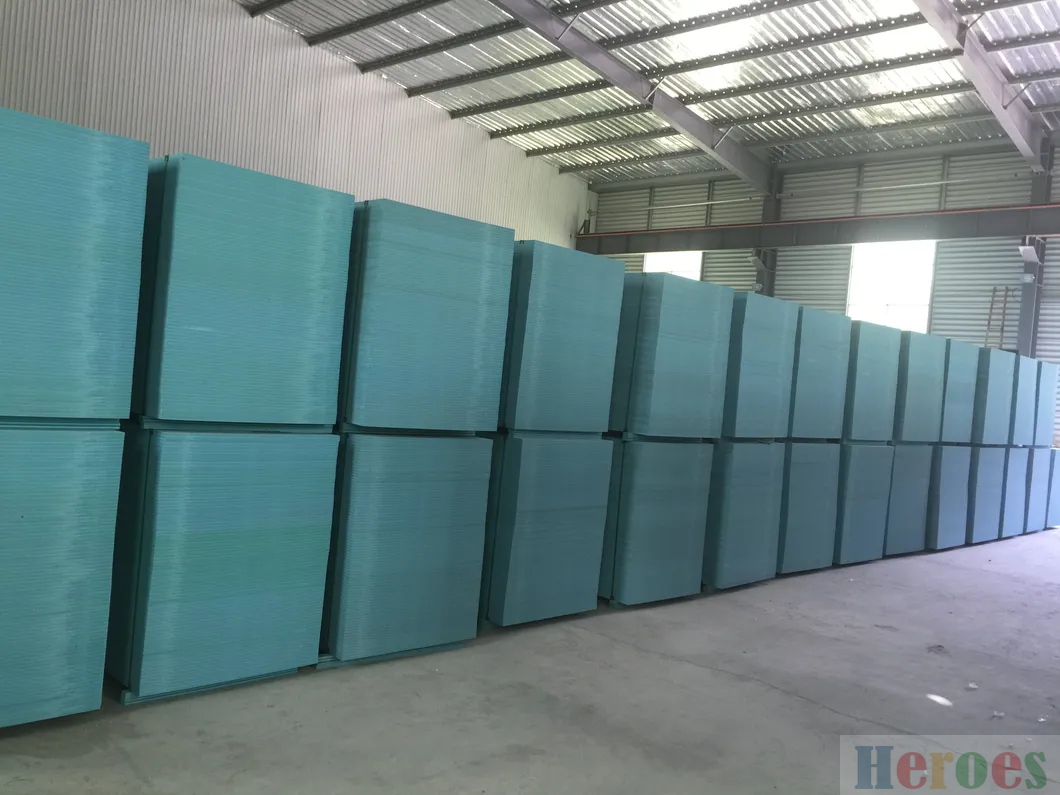

Packaging & Shipping
The PVC board can be palletized or loose sheets when loading containers.

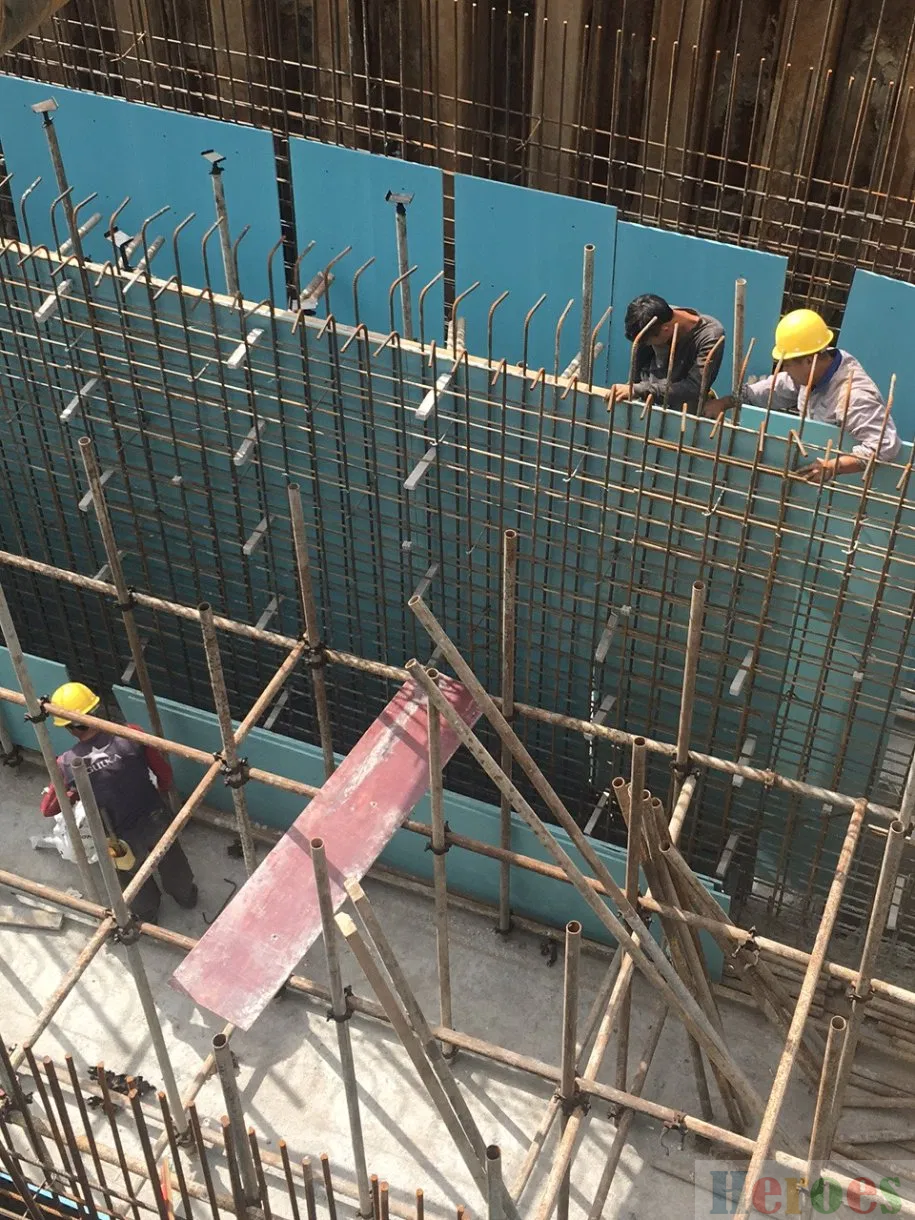

Project Pictures
